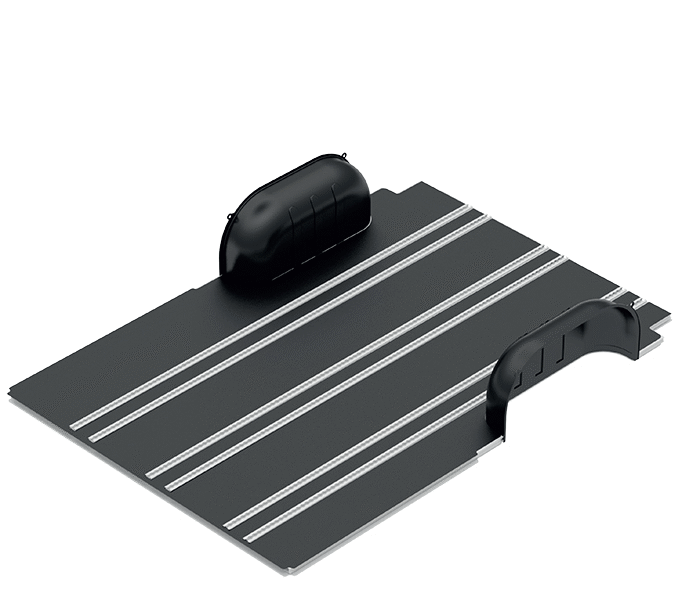

Flexible and Reliable Aluminum Floor
HandiFloor is one of the most versatile floor systems on the market, allowing for hundreds of diffrent floor layouts, depending on what is required for the specific task.
It is designed with a high degree of flexibility that allows you to change the interior layout on the spot – and move your seats and restraints around to suit your needs.
The HandiFloor aluminium proiles are only 25 mm high, which is the lowest on the market. This ensures a maximum internal roof height in your veichle.
We offer the most used layouts pre-cut to fit the shapes of the various vehicles.
We have various standard layouts with 6, 8 or 10 rails for the most used vehicles, like i.e. Ford Transit, VW Crafter, MAN TGE, MB Sprinter, Opel Movano, Renault Master and Fiat Ducato.
HandiFloor is M1 certified by TÜV and RDW according to UN ECE R14.07 and is the ideal solution when flexibility and reliability is important.
Anodized Aluminum
Our aluminum is anodized, which makes it easier to work with. Surface treated aluminum is easier to click together.
Flexible solutions
Even with our standard pre-cut layouts, you can choose between different solutions to fit your needs:
PR: Precut floor with raw profiles, meaning that the floor will come as loose profiles ready for installation in the vehicle.
PV: Precut floor with raw profiles and with additional vinyl already precut and ready to be glued onto the profiles.
F: Precut and assembled floor with vinyl – a complete floor ready to be installed in the vehicle.

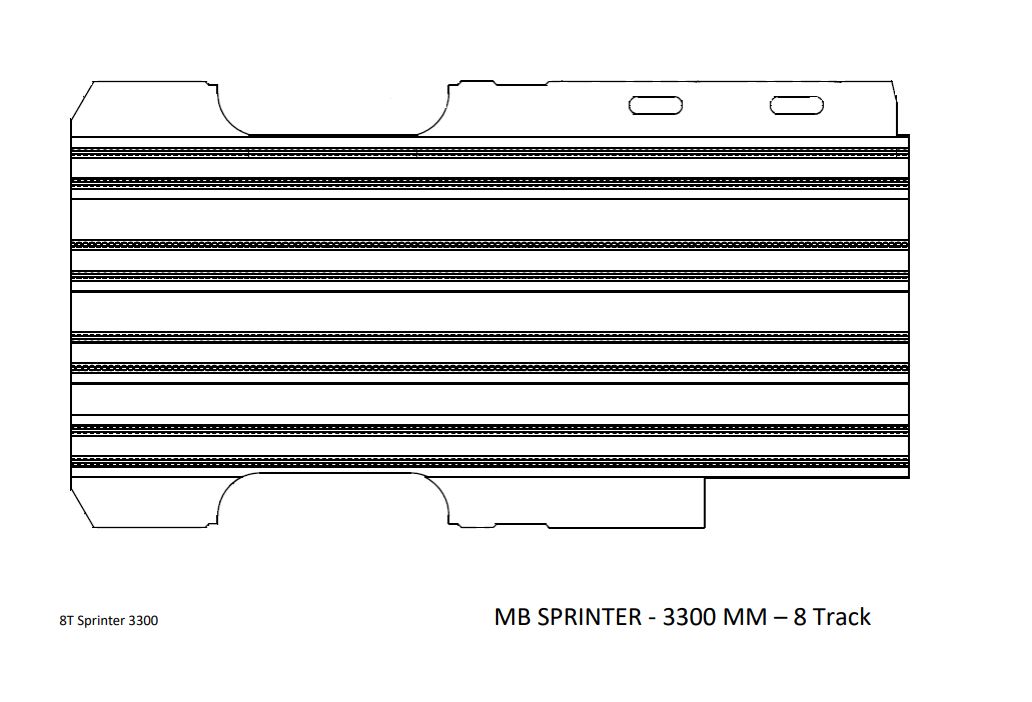

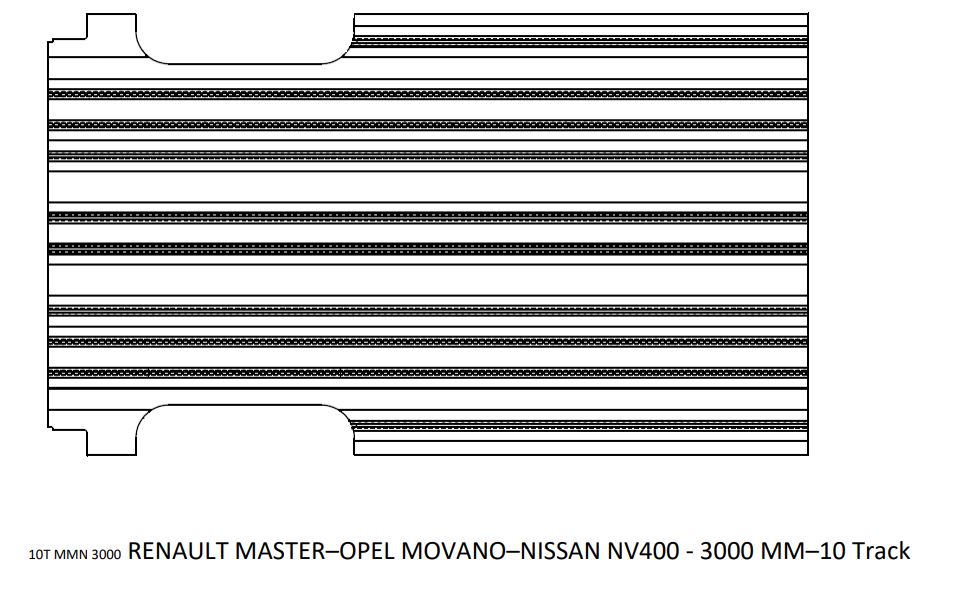

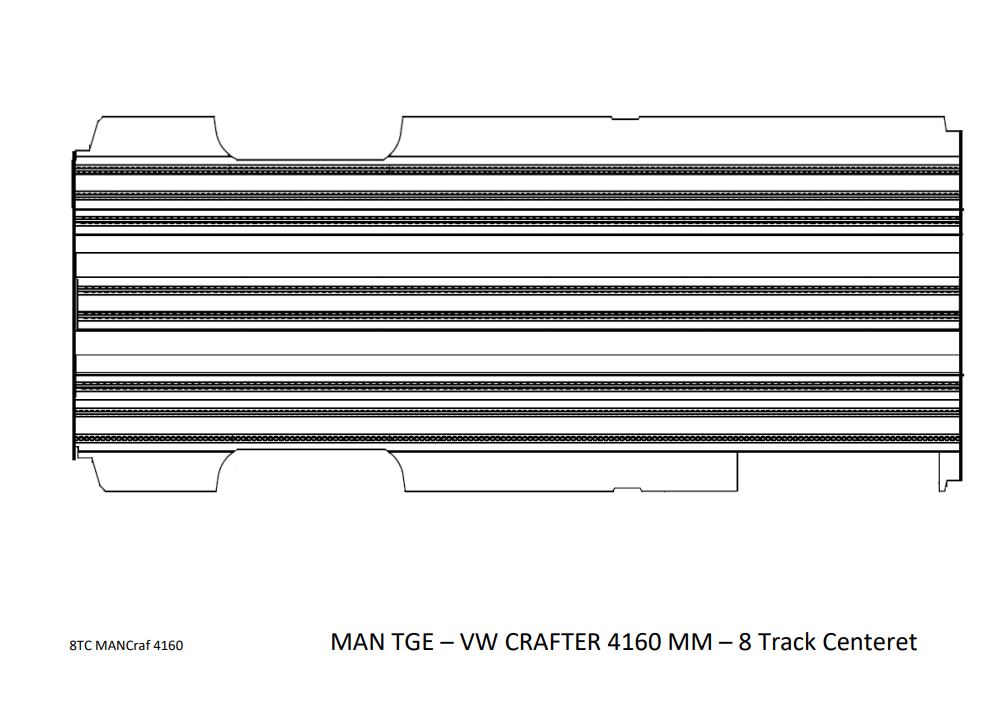

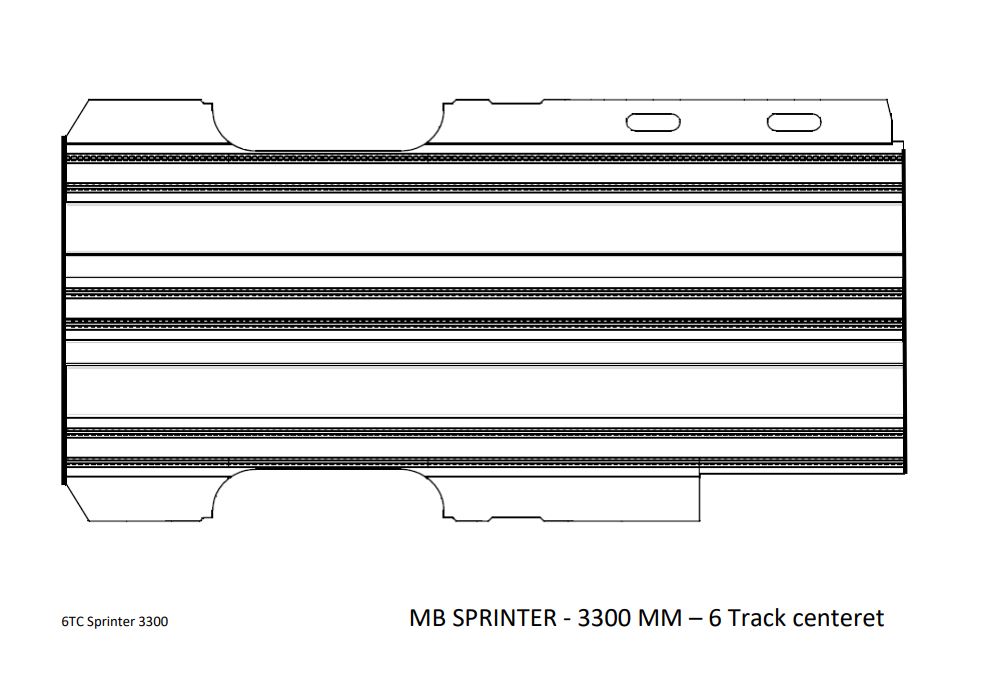

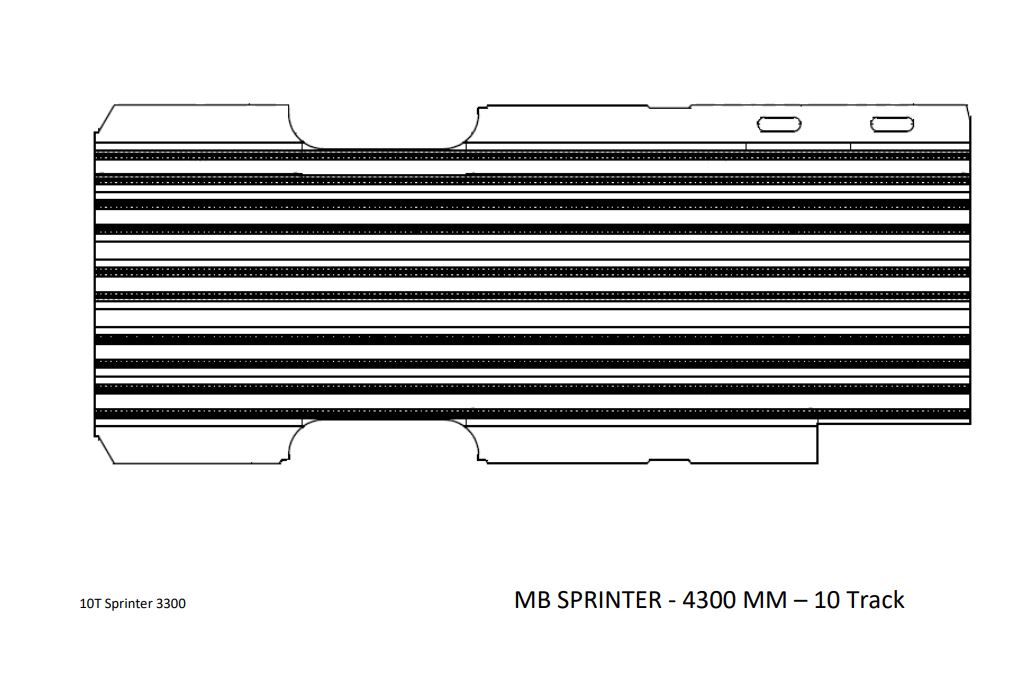

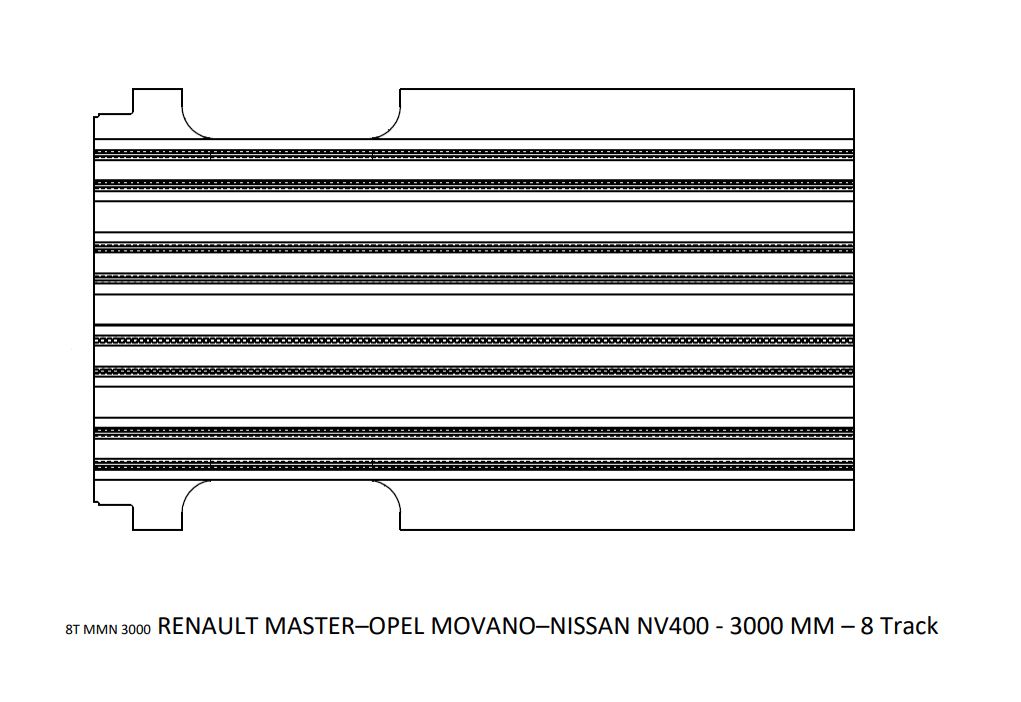

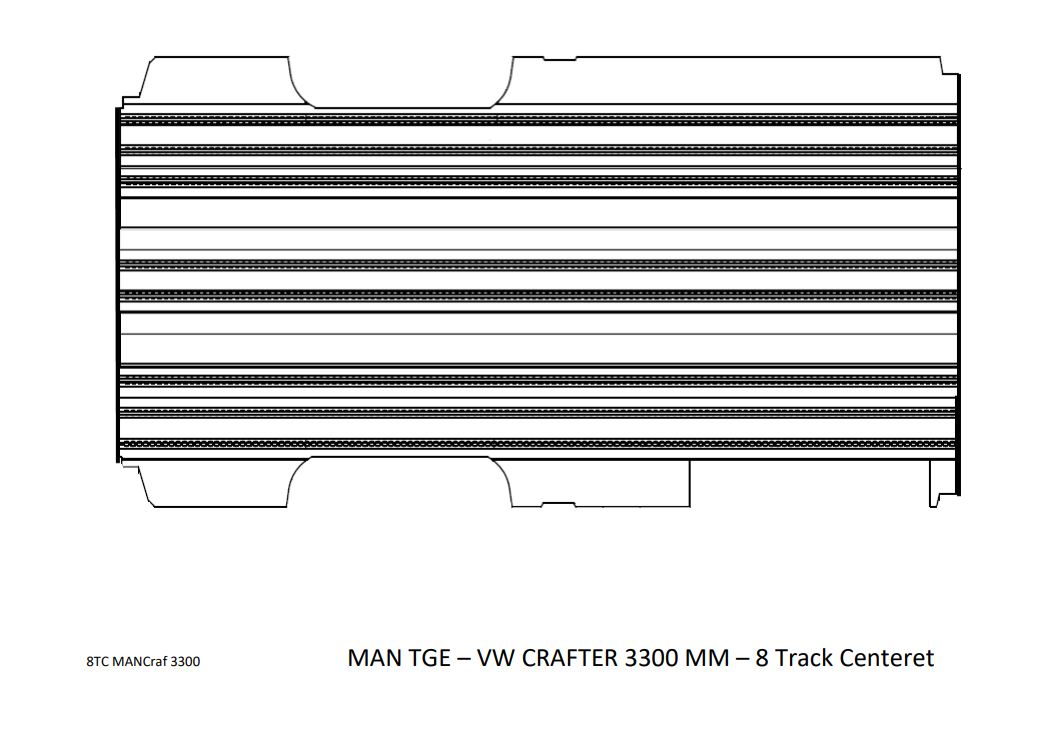

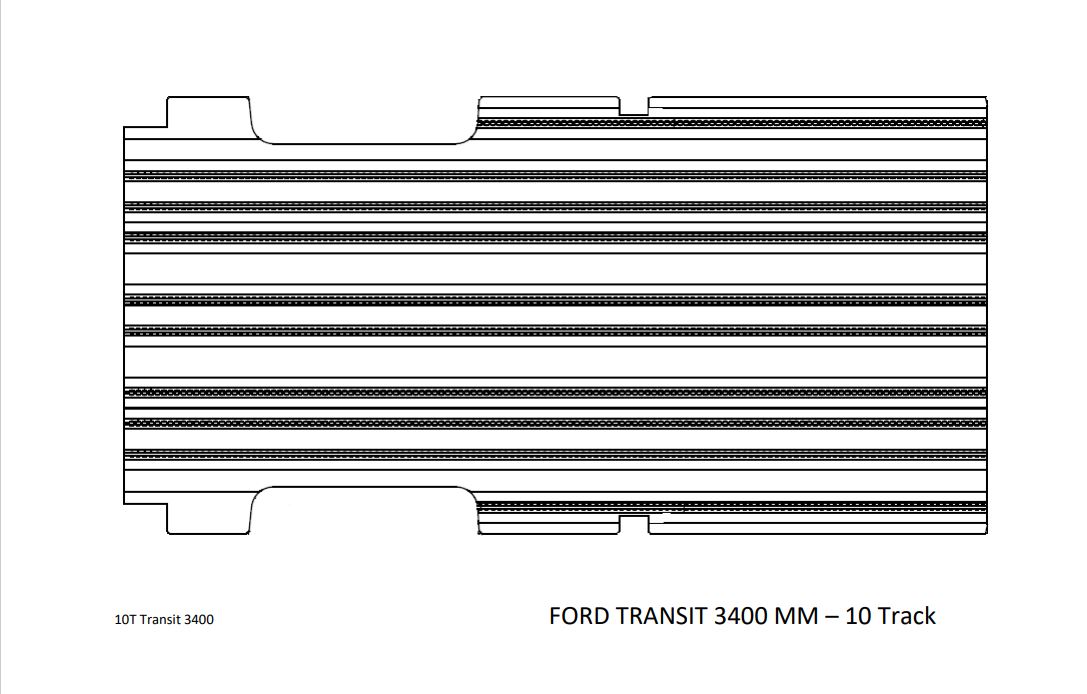

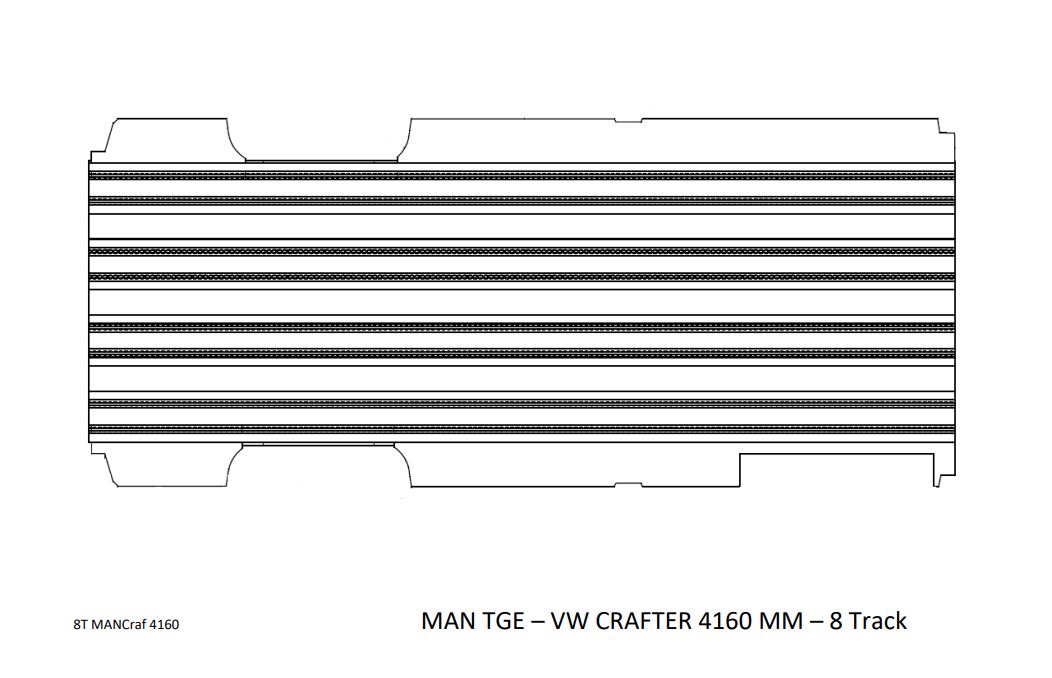

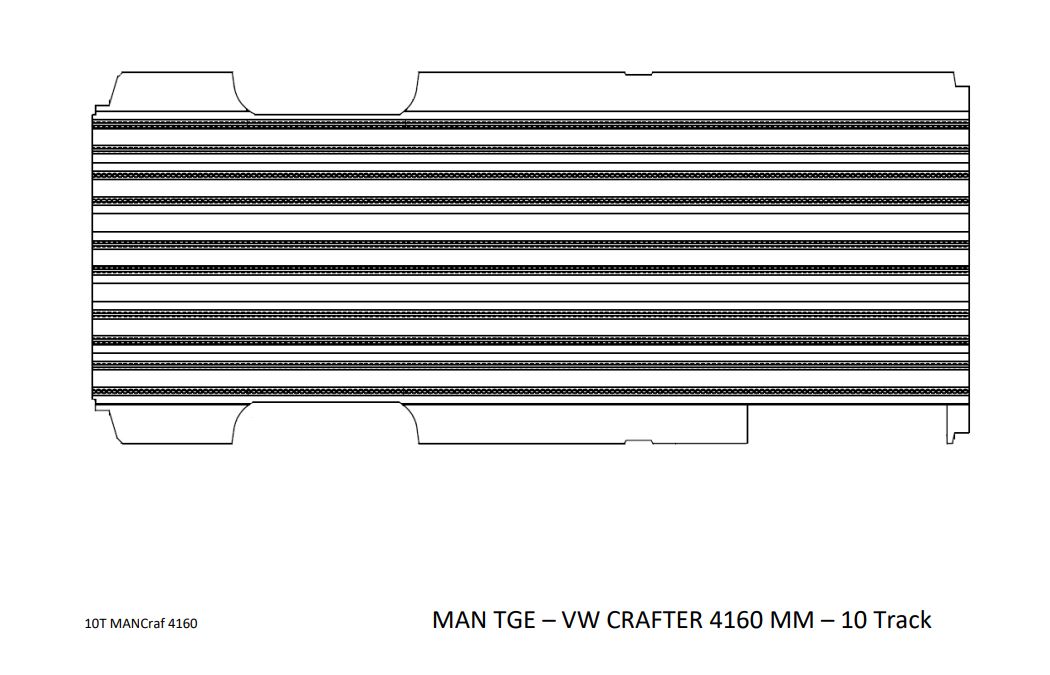

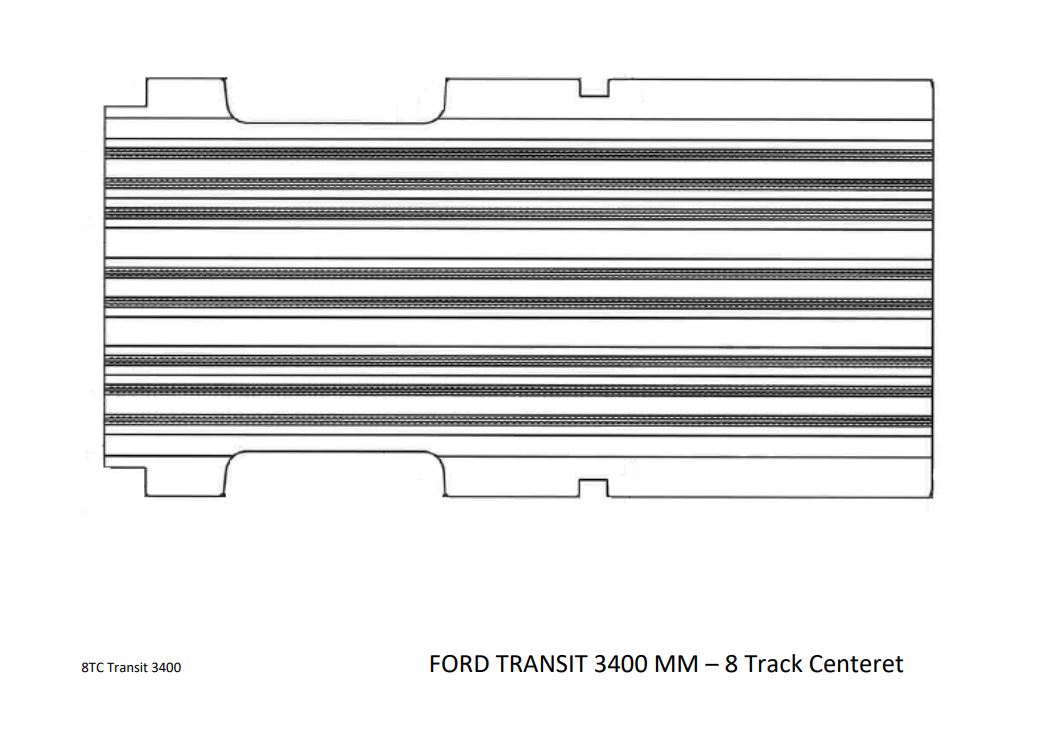

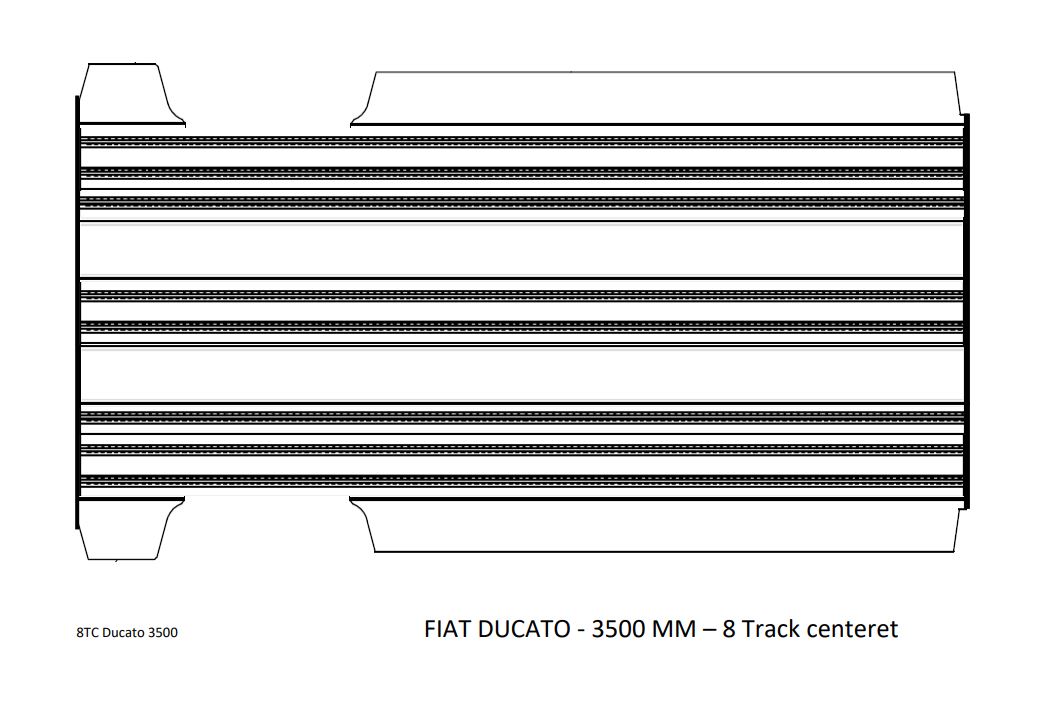

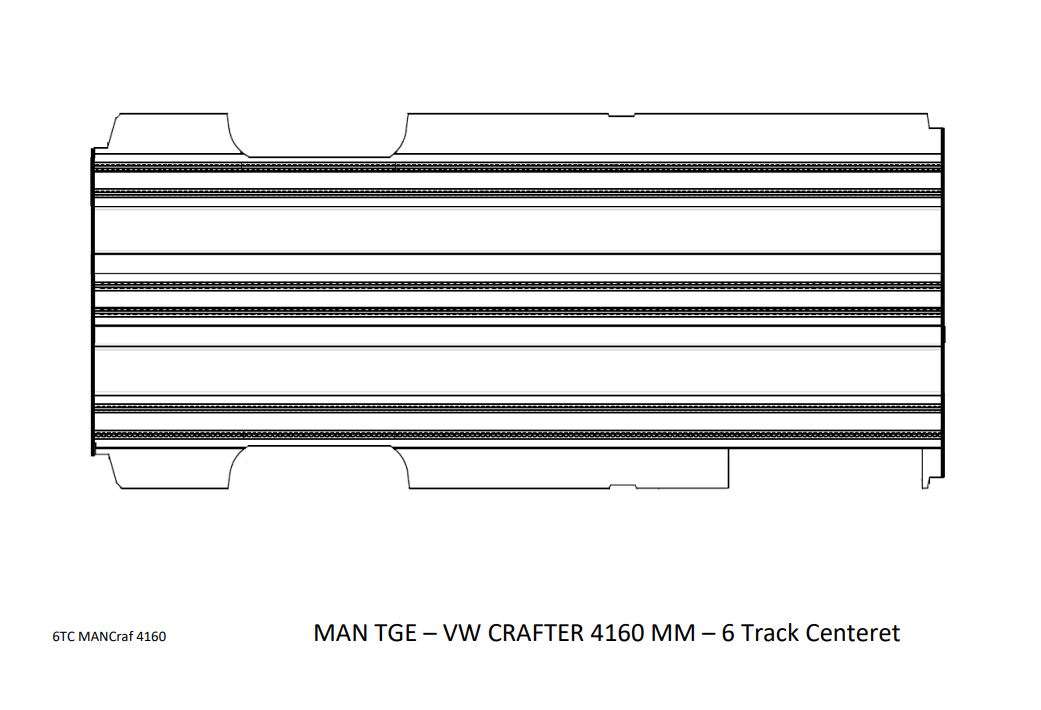

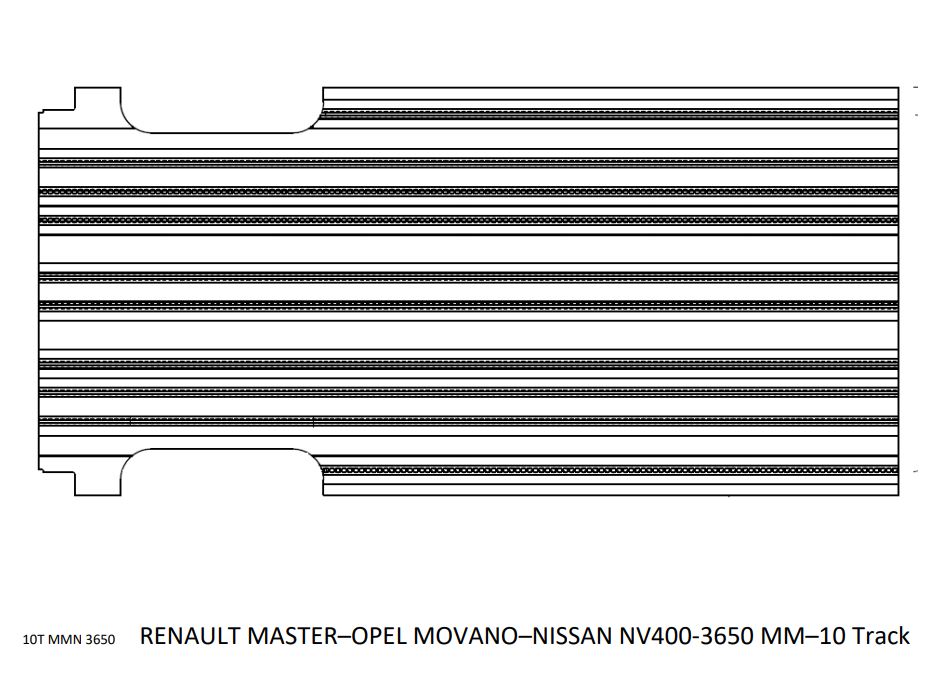

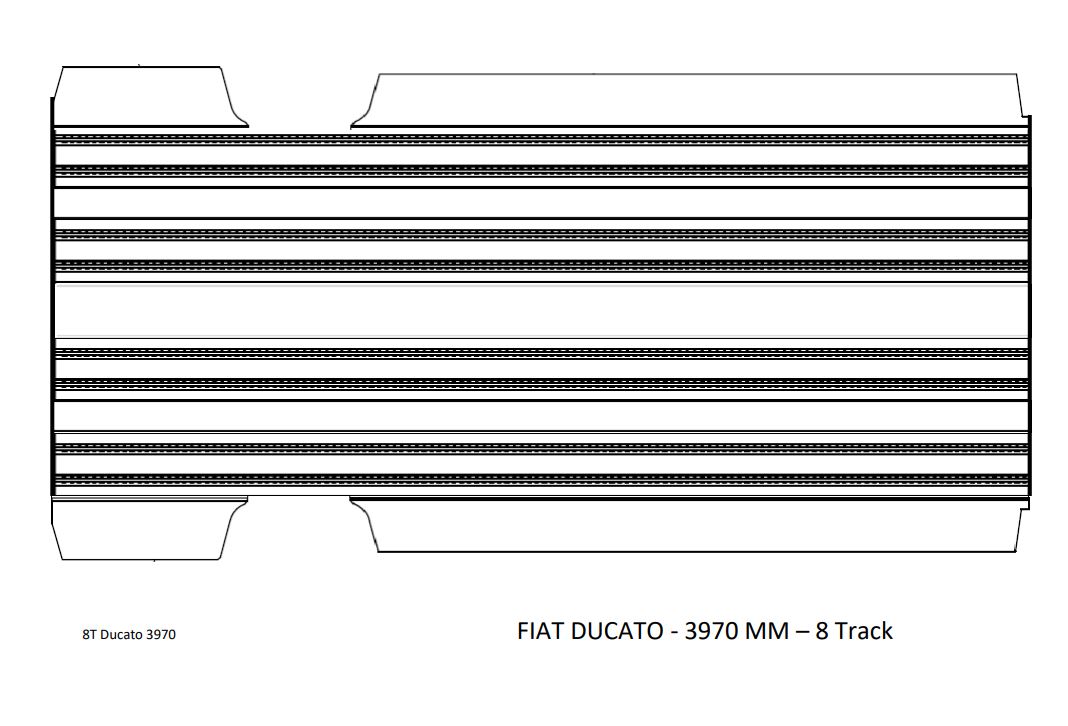

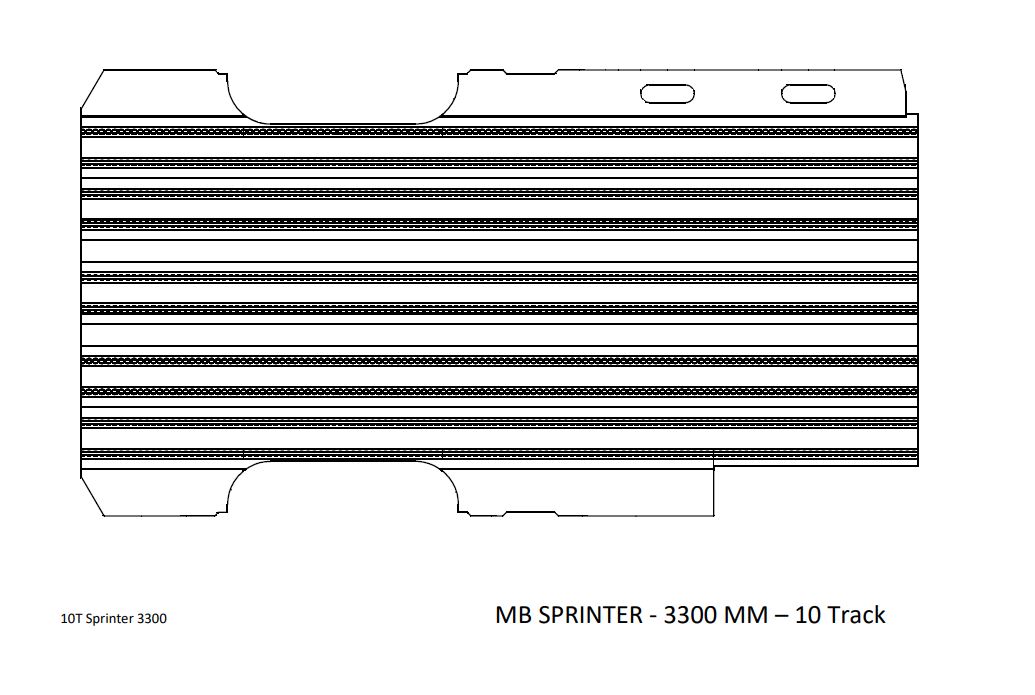

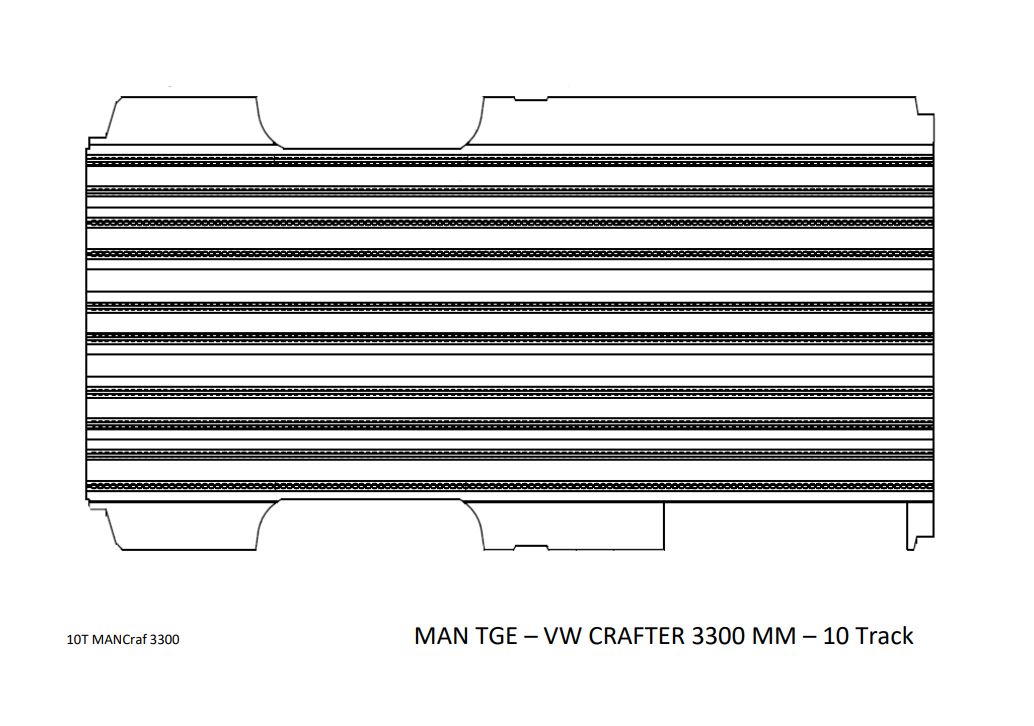

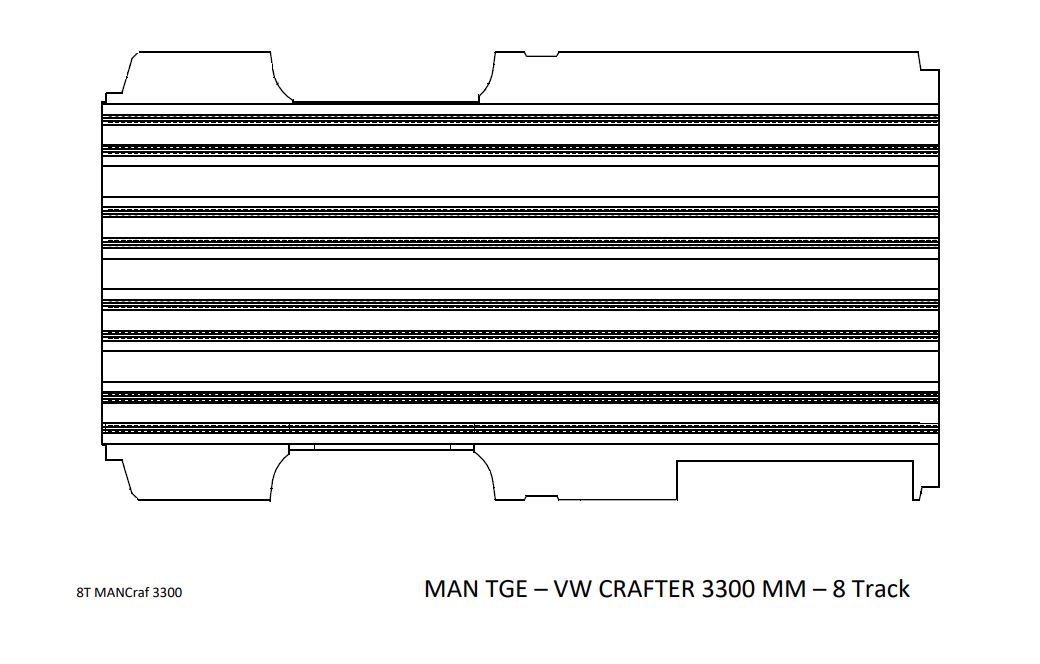

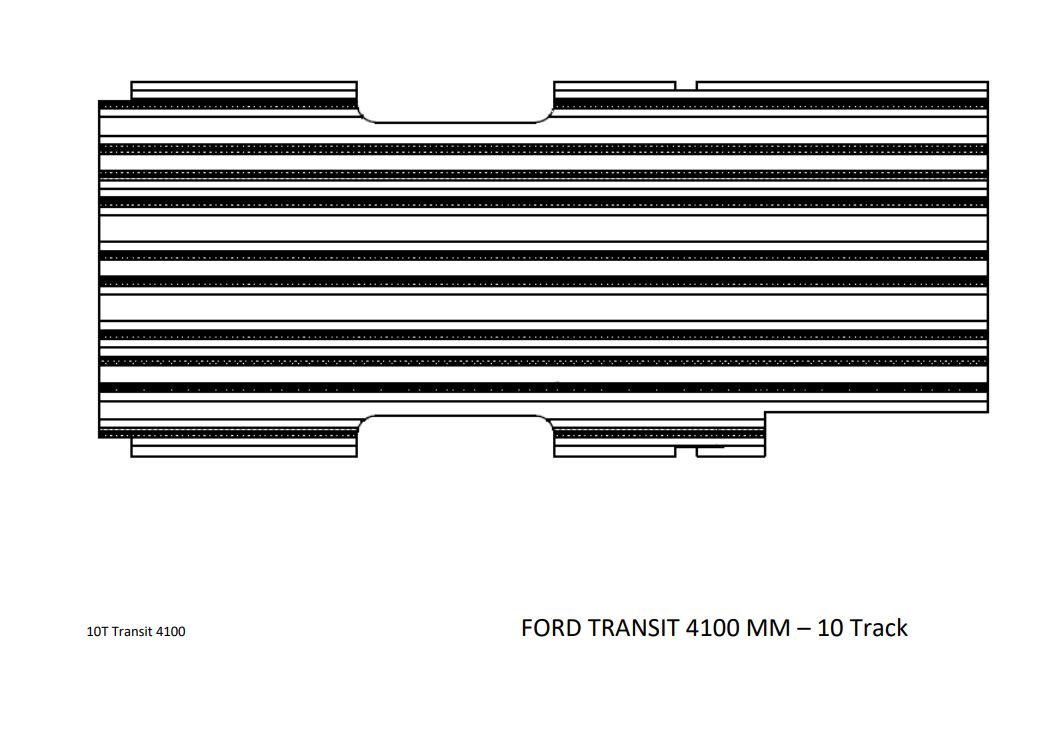

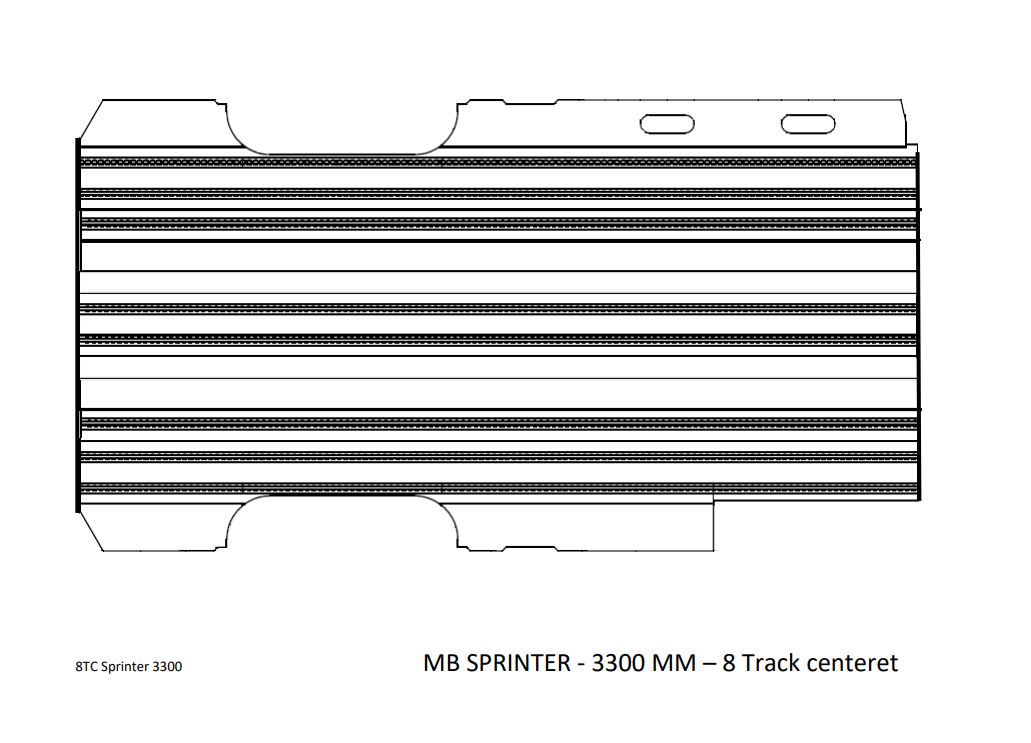

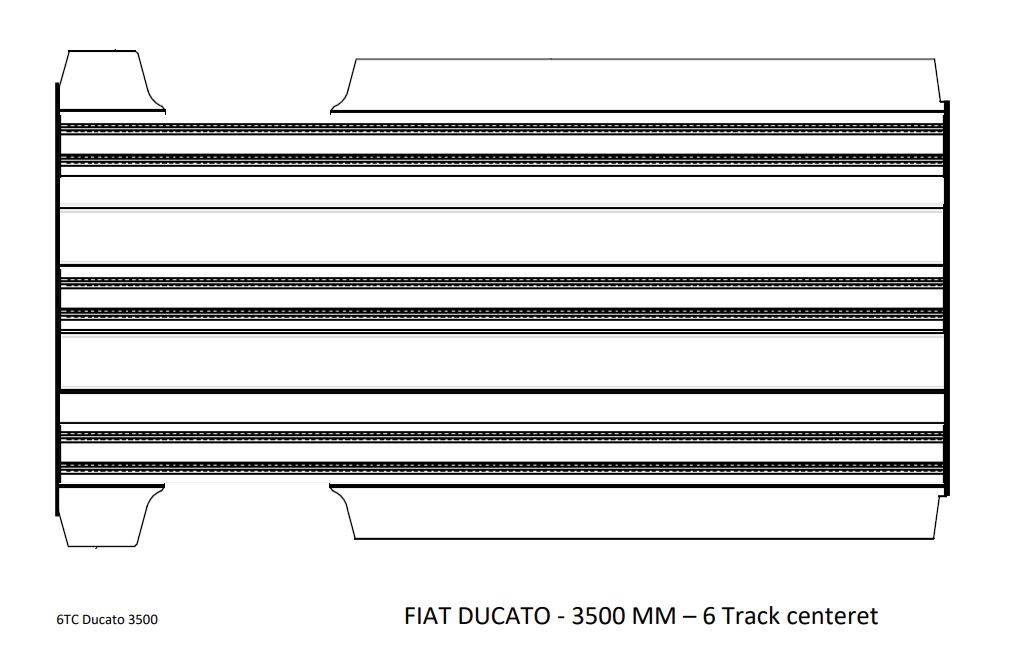

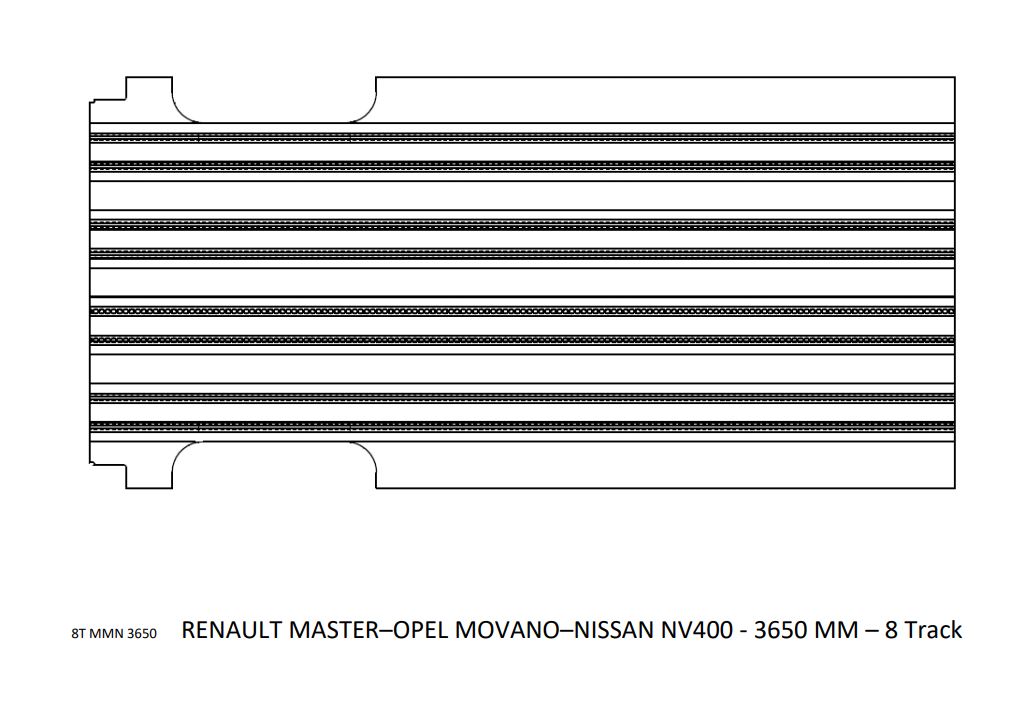

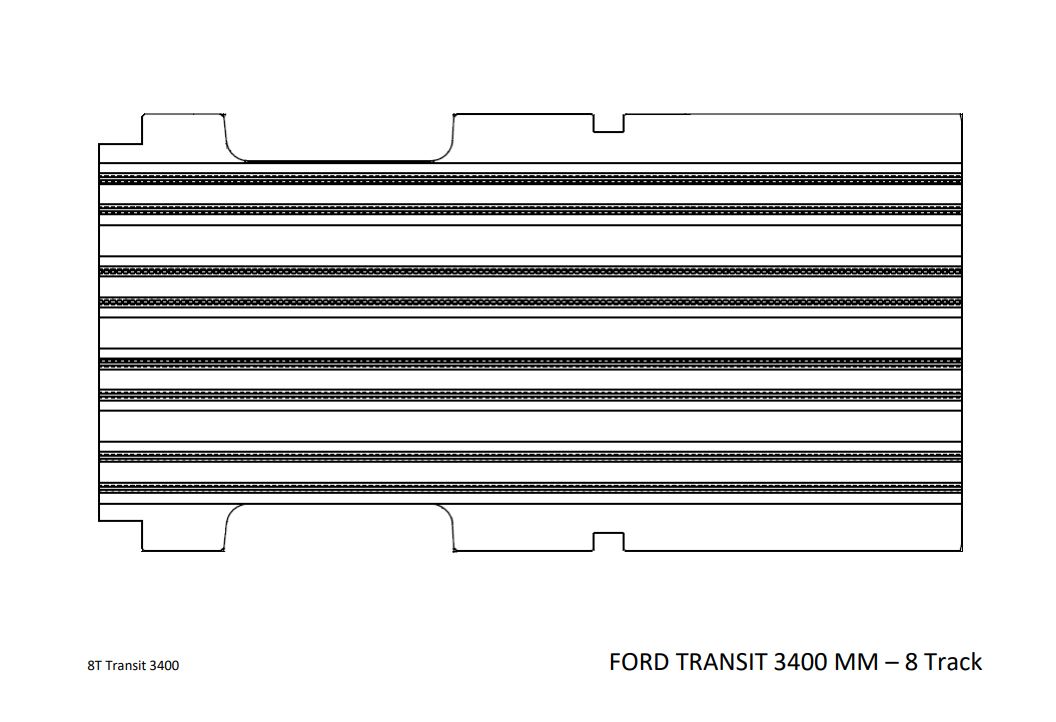

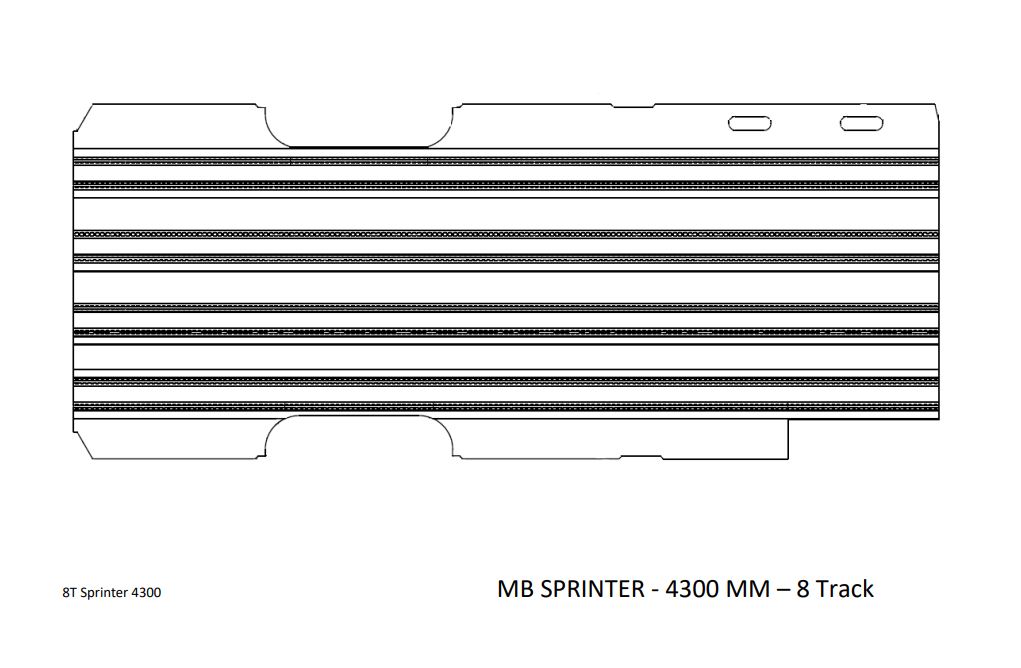

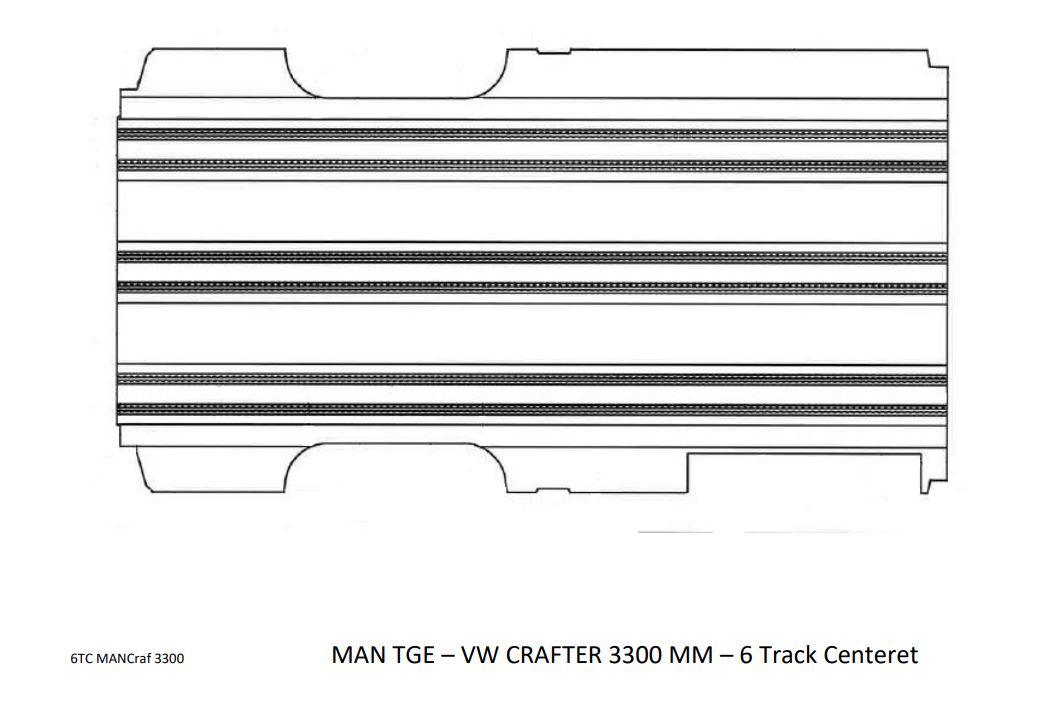

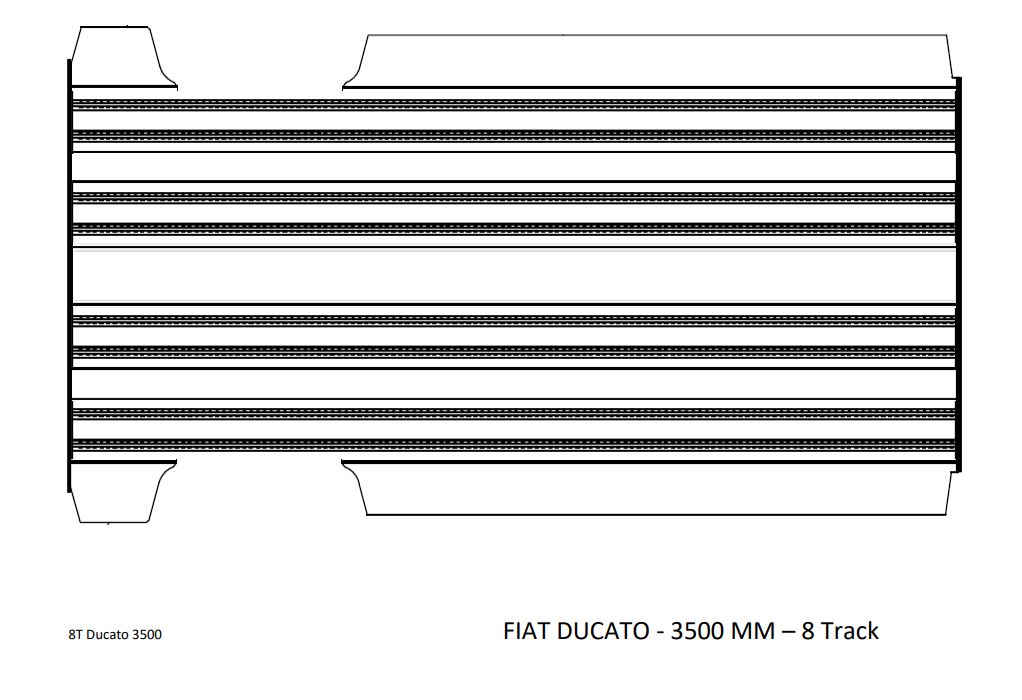

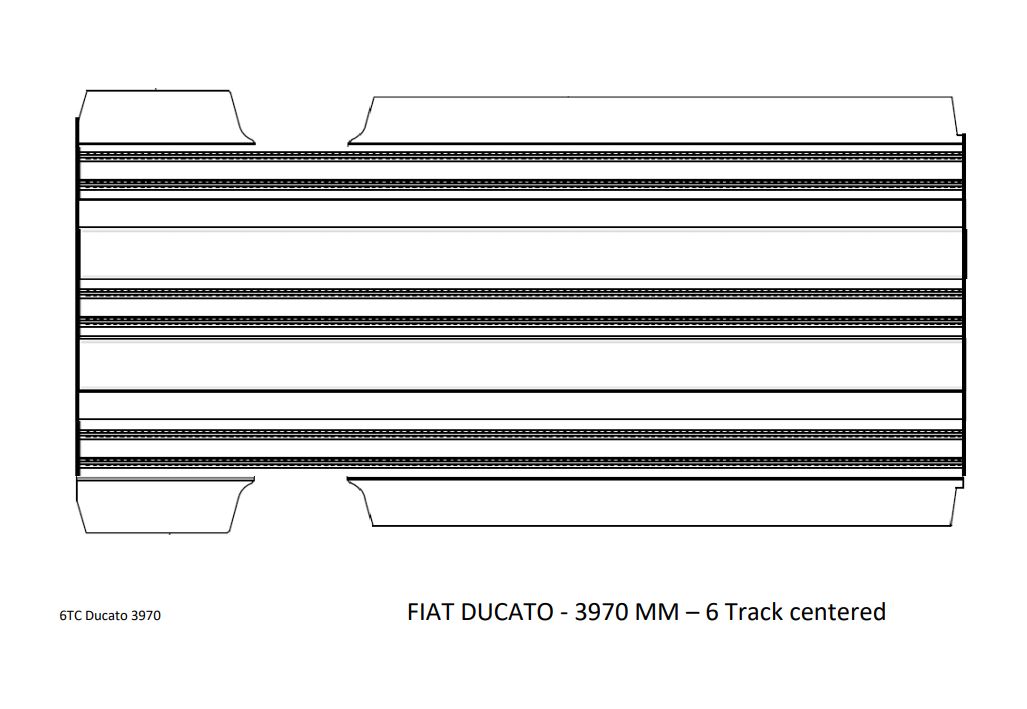

See examples of our most common layouts:
Vinyl
We offer our standard layouts with either grey or dark grey vinyl with a R10 slip-resistance; – precut to fit the contours of the vehicle and to fit in-between the rails. This makes it very time efficient to install our standard floor. All you need to do, is to glue it into the vehicle.
Profile overview
Mini Spacer
86 mm. width
Mini spacers can be supplied in 1500 mm., 2500 mm., 3000mm., 3300 mm., 3500 mm., 3650 mm., 4300 mm. and 4700 mm. length.
Single Spacer
122 mm. width
Single spacers can be supplied in 1500 mm., 2500 mm., 3000mm., 3300 mm., 3500 mm., 3650 mm., 4300 mm. and 4700 mm. length
Double Spacer
244 mm. width
Double spacers can be supplied in 1500 mm., 2500 mm., 3000mm., 3300 mm., 3500 mm., 3650 mm., 4300 mm. and 4700 mm. length
Single Airline
122 mm. width
Single airline tracks can be supplied in 1500 mm., 2380 mm., 2500 mm., 3000mm., 3300 mm., 3400 mm., 3500 mm., 3650 mm., 4300 mm. and 4700 mm. length
Double Airline
244 mm. width
Double airline tracks can be supplied in 1500 mm., 2380 mm., 2500 mm., 3000mm., 3300 mm., 3400 mm., 3500 mm., 3650 mm., 4300 mm. and 4700 mm. length
