Seat Legs for Mini Buses
The seat bases are available in all types of variants from regular to legs for mounting above the wheel arch. From fixed (F) to detachable versions.
Quickstep Leg
A very durable lightweight leg which meets all requirements in relation to the M1 category.
The leg is front operated and easy to access. It can even be operated with the foot.
Detachable HandiSeat Leg
Our detachable HandiLeg has been tested in the HandiFloor according to the ECE requirements, and is available in different heights.
Weight: from 8,2 kg. and up after
Height: 300 mm / 337 mm / 370 mm
Order no.: 710370 / 710369 / 710368
Fixed HandiSeat Leg
Our fixed HandiLeg has been tested and approved for installation in HandiFloor according to all relevant ECE-regulations together with HandiSeats.
Weight: from 8 kg. and up after
Height: 260 mm / 300 mm / 337 mm / 370 mm
Order no.: / 761040 / 761041 / 761042

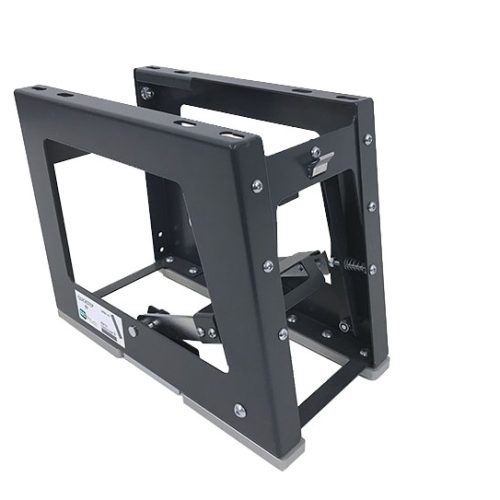

Quickstep revolving seat
The pyramid-shaped leg for tip and fold seats.
The leg fits L-Floor
Weight: 8,5 kg.
Order no.: QS288D
HandiSeat TAF leg
A turnable fixed leg version for HandiSeat Turn & Fold. It fits the Handifloor.
Weight: 8,2 kg.
Height: 250 mm
Order no.: 700365
45 Degree Leg
Legs for floor and wall mounting by the wheel wells. It fits the L-floors.
Weight:
Order no.: Q288EL45 (left) / Q288ER45 (Right)
Single Bridge
Bridge for mounting a single TAF seat over the wheel well. Fits in L-Floor
Height:
275 mm for Mercedes Sprinter
335 mm for MAN TGE / VW Crafter / Transit
385 mm for Fiat Ducato
Order no.: BOM275x1237 ( Sprinter)
BOM335x1618 (MAN TGE/ VW Crafter/ Transit)
BOM385x1237 (Fiat Ducato)
Double Bridge
Bridge for mounting a double TAF seat over the wheel arch. Fits in the L-Floors
Height:
275 mm for Mercedes Sprinter &
335 mm for MAN TGE / VW Crafter / Transit
Order no.: BOM275x1618 (Mercedes Sprinter)
BOM335x1618 (MAN TGE / VW Crafter / Transit)
Saddle for Bridge
Seat component for the bridge over the wheel well.
You need one per seat.
Weight: 2,02 kg.
Order no.: SADEL
Fixed leg
Fixed single leg. The leg fit in L-Floor
Weight: 3,66 kg. or 4,08 kg.
The weight is incl. everything – screws etc.
Height: 288 mm or 350 mm
Order no.: Q288FIX / Q350FIX
Glider for wheel well bridge
Set of 4 gliders for mounting the seat on the bridge over the wheel well.
Order no.: GLIDBOM
Glider for fixed seat leg
Set of 4 pcs. to mount a seat on a fixed leg.
Order no.: GLIDFIX
Wheels for HandiSeat Leg
The detachable seat legs can be combined with a set of wheels.
The wheels helps to indicate the exact position of the seat legs locking position in the rail.
Order no.: 700376
Wheels for Quickstep Leg
Quickstep wheels can help you when you need to move a seat. Just loosen the seat leg and tilt the seat. Now you can roll the seat and avoid heavy lifting.
Sold as a set with 2 pcs.
Order no.: QWHEEL
